voltage
is the pressure that pushes electron current against
opposing resistance

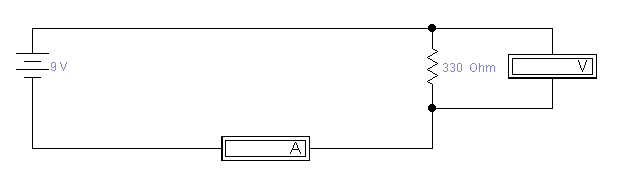

1) If a 330 ohm
resistor is connected to a 9V DC source what
is the current that will flow?
In daily use an electrician
is most likely going to use ohm's law/power to determine current in a circuit
which will help determine the size of cable to be used in a circuit
installation.
(other considerations such
as number of conductors in the conduit, type of insulation, and length,
determine the final cable sizing calculation)
2) This question uses power formula to
determine the size of cable used to feed a commercial baker's oven.
Bakers
Pride Electric Counter
Top Pizza Oven P18
BP-P18S
$1,065.00
Single compartment, 3" deck height ovens feature two
ceramic hearth baking decks and are designed for pizza,
pretzels, flat breads and bakery products baked directly
on the hearth deck, on screens, or on baking sheets. 120V
not recommended for fresh dough pizza. Stainless exterior.
These Pizza ovens are stackable. 17-1/2 x 17-3/4 inch deck
size. 23"x25"x"27" overall dimensions. Available
120V-1800W or 208-240V-2850W. 300-650 degrees F. UL, NSF
approved.
|
|
|
|
If you are energizing the above oven at
120V what size of cable would you use?
WIRE SIZE
CALCULATOR
So a 14 AWG conductor could be used as the
minimum size a size 12 would be safer but cost a little more.
|
